<< MECHANICAL DIAL INDIATORS








SPECIAL FEATURES :-


  • INDICATES GATE OPENING OF RADIAL & VERTICAL GATES.
  • VERTICAL OPENING OF RADIAL GATES.
  • CONTACTLESS ELECTRONIC LIMIT SWITCHES FOR FULL CLOSE AND FULL OPEN POSITIONS.
  • WEATHER PROOF GALVANISED POWDER COATED LOCKABLE ENCLOSURE.
  • HEAVY DUTY BRASS GEARS ASSEMBLY.
  • ON SITE  SELECTION OF CLOCKWISE AND ANTI-CLOCKWISE MOVEMENT OF INPUT SHAFT.
  • BALANCED ALUMINIUM HANDS & ALUMINIUM DIAL
  • SUITABLE FOR VARIOUS TYPES OF MOUNTING POSITION.


Vidyut Mechanical Dial Indicators are designed and manufactured specially for Dam Duty keeping in view the need to improve and overcome the limitations and maintenance problems of existing Dial Indicators.

To overcome various problems and to increase the reliability, VIDYUT dial Indicators have the following unique features:

The Dial Indicators are made from Heavy Gauge sheet Steel Box duly Electro Galvanized, Powder Coated & Oven baked at 200° C to avoid the problem of corrosion against humid atmosphere at dam site.
The door is provided with Rubber Packing and Acrylic front window with the double-flanged rubber packing, to protect against Rainwater and insect.

The coupling between the gate floating shaft or end reduction gear shaft and the Dial Indicator input shaft is through chain or flexible coupling so that misalignment doesn’t affect the performance of Dial Indicators.

The input shaft of the Dial Indicator is of 19 mm with support of 2 nos. sealed ball bearings. The mounting accuracy and centrality is maintained by special double holding Bracket which holds the gear shaft on one side and bearing shaft on other side.

The Dial and hands are made from Aluminum and painted with Epoxy Paint baked at 200°C so that it is not affected by the weather.  The scale markings are screen printed with scratchproof ink or engraved.

The dial can be marked in Radial or Vertical opening for Radial gates.

The movement of the Pointer is generally clockwise. However, to match with the movement of the gate shaft, clockwise and anti-clockwise movement of the input shaft can be selected at site.

The gears of the Dial Indictor are made of brass mounted on the accurately drilled brass plates with brass output shaft.

Screws and Nuts used for the fittings inside and the Dial Indicator are of Stainless Steel.

The Limit Switches provided are of NON-CONTACT Electronic type totally sealed weather proof switches. As there is no physical contact like Cams, etc. and no mechanical force required to operate the limit switches, the operation is very smooth and accurate.  The limit switches being totally sealed, the question of vermines and insects going in and jamming the contacts is not possible.

The Limit Switches are set from the front with the screw driver arrangement so that setting procedure is very easy and Limit Switch can be accurately set as required. The Dial Indicator is provided with Siemens type locks and provision is also there for putting a padlock.

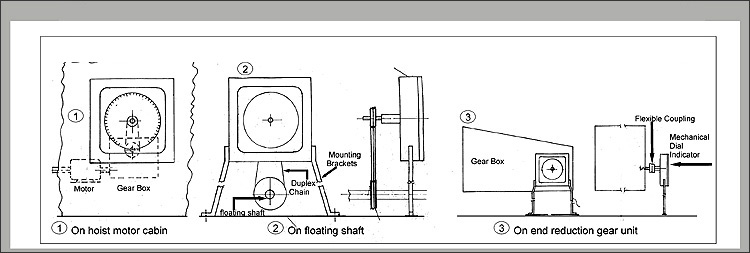

The INPUT SHAFT of the Dial Indicator can be connected to the Gear of the Gate Shaft by any one of the following ways:

  1. The Dial Indicator can be mounted on the Hoist Motor Cabin where the starter is provided, so that the operator can see clearly what is the gate opening and can stop at the desired opening of the gate.  The Input Shaft is connected with Floating Shaft by Heavy Duty DUPLEX Chain and Sprocket. This is the most convenient position from the point of safety, operation of gate and accuracy.

  2. The Input Shaft of the Dial Indicator is connected to the extended Shaft of the End Reduction Gear with Flexible Coupling.

  3. The Dial Indicator is supported on a stand over the floating shaft on the bridge and connected to the Floating Shaft by Duplex Chain and Sprockets.

  4. In hydraulic hoist the mechanical dial indicator input shaft can be driven by Chain or rope coming from the gate and counter weight system.

    Lighting arrangement at extra cost, can be provided inside the indicator.


All products mentioned here can be customized according to requirements.
